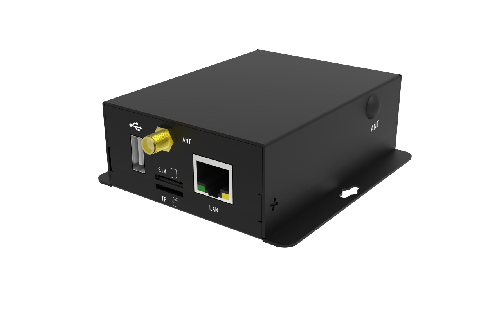

    Introduction

    The TM-CP1B is a compact industrial DTU modem for data acquisition, Modbus Gateway, and communication applications. It comes with 1 x RS485 、 1 x RS232 serial ports and 1x 10/100 Mbps Ethernet port, as well as a built-in socket to support 4G LTE、WIFI and LoRa cellular modules.

    Brief introduction

    • Cortex A7 + MCU + NPU 0.5 TOPS,1.6 GHz CPU
    • 256MB RAM + 8GB eMMC, supports Micro SD expansion
    • Ubuntu 24.04 server and Cockpit management software
    • Isolate RS232 / RS485 serial port, Vrms>3.5KV
    • 10M/100M adaptive Ethernet
    • Built in high reliability security chip (ATSHA204A)
    • Built in Mini-PCIe slot for 4G cellular module (Optional)
    • Built in LoRa (410~525MHz, 850~931MHz, 126mW) (Optional)
    • Built in wireless network WIFI/BT module (Optional)
    • Built in RTC clock circuit
    • 35mm DIN-Rail and wall mount Supported
    • 9--36V wide voltage supply
    • 94mm×70mm×33mm (L×W×H)
    • -40°C to +85°C Operating Temperature

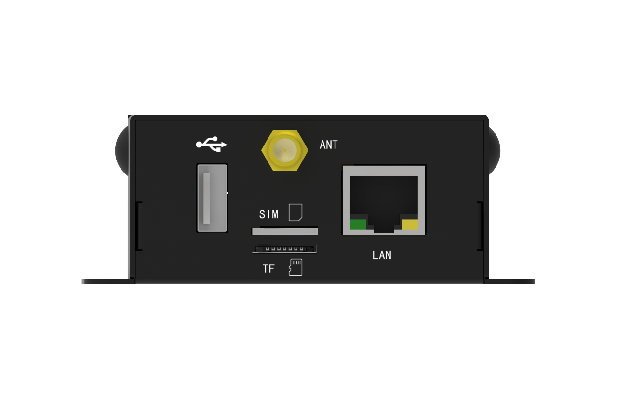

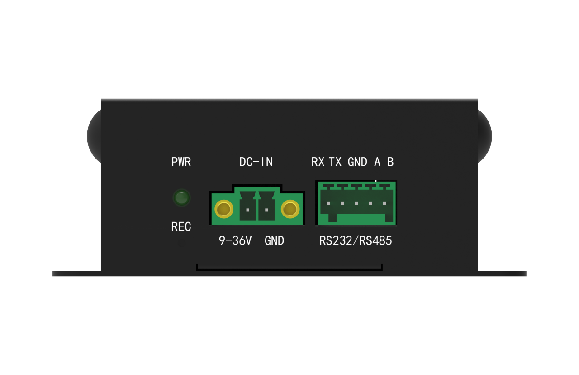

    Interface

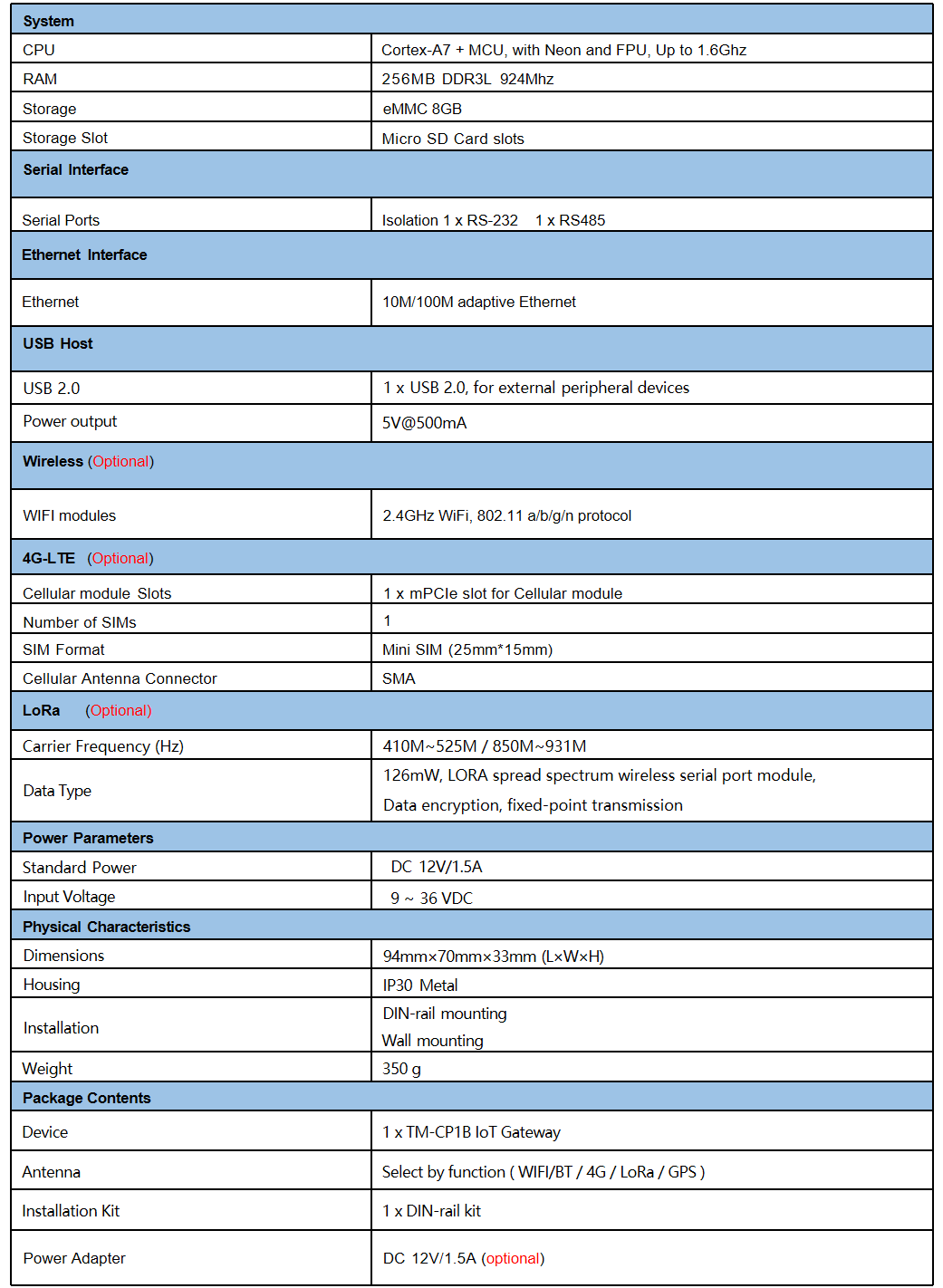

    Specifications

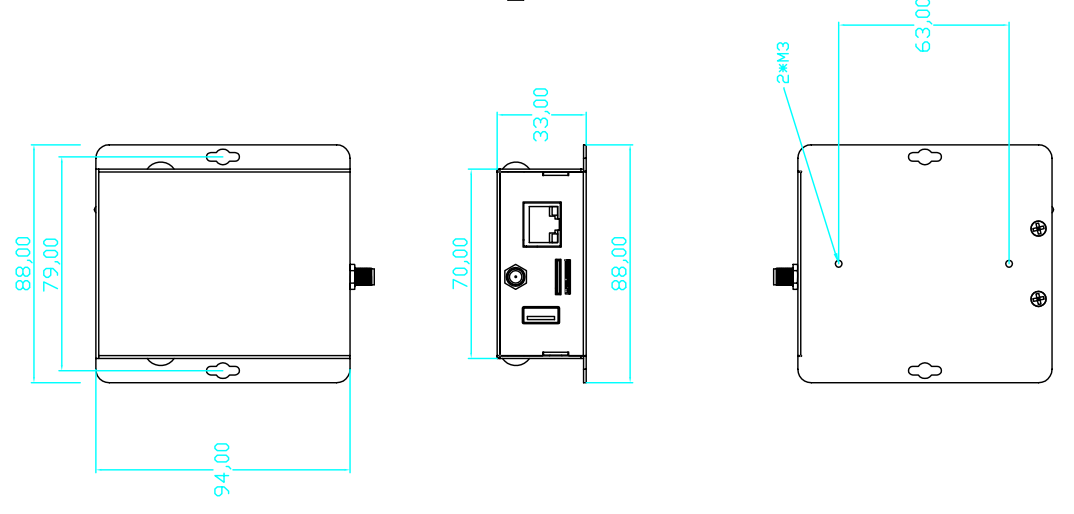

    Dimensions
