Posts made by 大法师

大法师

@jugg said in Cool pi 4B & CM5 探索快速安装系统新方法:

@大法师
你这接的不是U3上面那个口？
我接的不是对的？

看文字描述。图片是角度示意

大法师

@jugg 你手上有几块板，换个试下。emmc模组看下有没有扣好

大法师

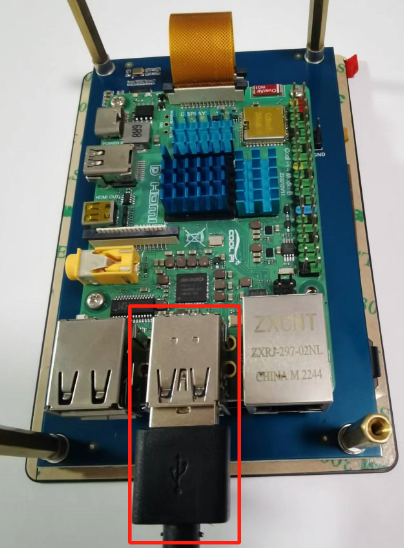

@jugg

这个角度看，U3下面一个口。

确认你的电源适配器

大法师

@wangyx server版本应该没有安装camera isp服务。你试下桌面是不是好的

sudo apt install -y camera-engine-rkaiq  gstreamer1.0-rockchip gstreamer1.0-plugins-good gstreamer1.0-plugins-bad gstreamer1.0-plugins-ugly

大法师

@jugg 有没有试过品牌U盘。这个方法我一直在用

大法师

@shengxia 可以的

大法师

@3395438 资料整理中。同时近期会推出cool pi 笔记本产品

大法师

@shengxia 默认内核没有配置启用，比如RNDIS。你可以试下打开

大法师

@shaq openkylin与uboot无关

大法师

@jugg 先确认安装U盘是否可用，备份U盘是否可用。用备份好的U盘，把backup目录文件拷贝到安装U盘install目录

大法师

虚拟构建X86-64 ubuntu/debian环境，可交叉编译应用（包含u-boot等）

大法师

@Jachyn 加 sudo 执行试下

大法师

@Jachyn 好

大法师

@Jachyn said in CM5如何安装网卡驱动？:

@大法师更新源码目录链接显示如下错误

ln: /lib/modules/5.10.110/build/kernel: cannot overwrite directory
ln: /lib/modules/5.10.110/source/kernel: cannot overwrite directory

sudo unlink /lib/modules/5.10.110/build
sudo unlink /lib/modules/5.10.110/source

然后再操作。编译可能有错误，你先排查下

大法师

@Jachyn said in CM5如何安装网卡驱动？:

@大法师大师内核已经编译了编译之后进行安装又报如下的错

更新内核源码编译目录链接（假定源码目录在/home/coolpi/kernel）

sudo ln -sf /home/coolpi/kernel /lib/modules/5.10.110/build
sudo ln -sf /home/coolpi/kernel /lib/modules/5.10.110/source

MLNX_EN_SRC-debian-23.04-1.1.3.0.tgz

MLNX_EN_SRC-debian-5.8-3.0.7.0.tgz
解压网卡驱动源码，编译

coolpi@coolpi:~/MLNX_EN_SRC-23.04-1.1.3.0$ sudo ./install.pl
Logs dir: /tmp/OFED.80654.logs
General log file: /tmp/OFED.80654.logs/general.log

Below is the list of OFED packages that you have chosen
(some may have been added by the installer due to package dependencies):

ofed-scripts
mlnx-tools
mlnx-ofed-kernel-utils
mlnx-ofed-kernel-modules

Checking SW Requirements...
One or more required packages for installing OFED-internal are missing.
Attempting to install the following missing packages:
swig  make python3 chrpath gcc quilt debhelper dh-python python3-distutils
This program will install the OFED package on your machine.
Note that all other Mellanox, OEM, OFED, RDMA or Distribution IB packages will be removed.
Those packages are removed due to conflicts with OFED, do not reinstall them.

Removing old packages
get_requires: libibverbs1 is required by qemu-system-arm, but qemu-system-arm won't be removed.
get_requires: librdmacm1 is required by qemu-system-arm, but qemu-system-arm won't be removed.
Building packages
Building DEB for ofed-scripts-23.04 (ofed-scripts)...
Running  /usr/bin/dpkg-buildpackage -us -uc
Installing ofed-scripts-23.04...
Running /usr/bin/dpkg -i --force-confmiss '/home/coolpi/MLNX_EN_SRC-23.04-1.1.3.0/DEBS/ubuntu22.04/aarch64/ofed-scripts_23.04-OFED.23.04.1.1.3_arm64.deb'
Building DEB for mlnx-tools-23.04 (mlnx-tools)...
Running  /usr/bin/dpkg-buildpackage -us -uc
Installing mlnx-tools-23.04...
Running /usr/bin/dpkg -i --force-confmiss '/home/coolpi/MLNX_EN_SRC-23.04-1.1.3.0/DEBS/ubuntu22.04/aarch64/mlnx-tools_23.04-0.2304053_arm64.deb'
Building DEB for mlnx-ofed-kernel-utils-23.04 (mlnx-ofed-kernel)...

-W- --with-mlx5-ipsec is enabled
Running  /usr/bin/dpkg-buildpackage -us -uc  -Pmodules
...

大法师

@jack_admin https://network.nvidia.com/products/ethernet-drivers/linux/mlnx_en/


The NVIDIA ConnectX adapter family can run Ethernet traffic simultaneously on two ports
Single software stack that operates across all available NVIDIA Ethernet devices and configurations such as mem-free, up to 400Gb/s, and PCI Express modes 3.0, 4.0 and 5.0
Support for HPC applications for scientific research and AI
Support for data center applications such as Oracle 11g/10g RAC, IBM DB2, Financial services applications such as IBM WebSphere LLM, Red Hat MRG, NYSE Data Fabric

大法师

@shengxia ok!

大法师

@cyberwisk
https://github.com/yanyitech/ubuntu/tree/main/bin/wifi/aic8800

大法师

@Jachyn 我们提供的内核源码，你下载一份，先编译一次。

大法师

@jugg
可以试下修改内核源码

drivers/input/touchscreen/tinker_ft5406.h
@@ -13,7 +13,7 @@
 #define FT_REG_FW_SUB_MIN_VER  0xB3

 #define VALID_TD_STATUS_VAL            10
-#define MAX_TOUCH_POINTS               1
+#define MAX_TOUCH_POINTS               5

重新编译内核，替换Image

大法师

@jugg 需要改触摸驱动代码。打开多点触控

大法师

@shengxia 你的主板我们同事看了，usb3上下层端口都没有问题。用相同的tf卡openkylin系统加usb nvme、usb ssd测试都可以识别到super speed。需要注意部分型号nvme转接板有自动休眠功能、供电需单独5V/2A

(你寄的nvme转接盒没有带盘)

大法师

大法师

默认系统未打开蓝牙服务

sudo hciattach -n /dev/ttyS1 any 1500000 &

大法师

默认镜像需要手动设置date，更新源之后，补充安装时间同步服务

sudo apt update
sudo apt install systemd-timesyncd
sudo reboot

大法师

tf卡启动，手动分区扩容

openkylin@openkylin:~$ sudo su
[sudo] openkylin 的密码：
root@openkylin:/home/openkylin# parted /dev/mmcblk2
mmcblk2    mmcblk2p1  mmcblk2p2
root@openkylin:/home/openkylin# parted /dev/mmcblk2
GNU Parted 3.3
使用 /dev/mmcblk2
欢迎使用 GNU Parted！输入 'help' 来查看命令列表。
(parted) p
型号：SD SD32G (sd/mmc)
磁盘 /dev/mmcblk2: 31.0GB
扇区大小 (逻辑/物理)：512B/512B
分区表：msdos
磁盘标志：

编号  起始点  结束点  大小    类型     文件系统  标志
 1    1049kB  269MB   268MB   primary  fat32     启动, lba
 2    269MB   7122MB  6852MB  primary  ext2

(parted) resizepart 2
警告: 分区 /dev/mmcblk2p2 正被使用。你确定要继续吗?
是/Yes/否/No? y
结束点？  [7122MB]? 100%
(parted) q
信息: 你可能需要 /etc/fstab。

root@openkylin:/home/openkylin# resize2fs /dev/mmcblk2p2
resize2fs 1.45.5 (07-Jan-2020)
/dev/mmcblk2p2 上的文件系统已被挂载于 /；需要进行在线调整大小
old_desc_blocks = 1, new_desc_blocks = 4
/dev/mmcblk2p2 上的文件系统现在为 7506688 个块（每块 4k）。

root@openkylin:/home/openkylin# reboot

首次刷机启动系统，未设置密码，用户可在GUI桌面终端初始化设置密码

大法师

USB移动硬盘插入上层U3端口

未插入
root@openkylin:/home/openkylin# lsusb -t
/:  Bus 08.Port 1: Dev 1, Class=root_hub, Driver=xhci-hcd/1p, 5000M
/:  Bus 07.Port 1: Dev 1, Class=root_hub, Driver=xhci-hcd/1p, 480M
/:  Bus 06.Port 1: Dev 1, Class=root_hub, Driver=xhci-hcd/1p, 5000M
/:  Bus 05.Port 1: Dev 1, Class=root_hub, Driver=xhci-hcd/1p, 480M
/:  Bus 04.Port 1: Dev 1, Class=root_hub, Driver=ohci-platform/1p, 12M
/:  Bus 03.Port 1: Dev 1, Class=root_hub, Driver=ohci-platform/1p, 12M
/:  Bus 02.Port 1: Dev 1, Class=root_hub, Driver=ehci-platform/1p, 480M
/:  Bus 01.Port 1: Dev 1, Class=root_hub, Driver=ehci-platform/1p, 480M
    |__ Port 1: Dev 2, If 0, Class=Hub, Driver=hub/4p, 480M
        |__ Port 3: Dev 3, If 0, Class=Human Interface Device, Driver=usbhid, 1.5M
        |__ Port 3: Dev 3, If 1, Class=Human Interface Device, Driver=usbhid, 1.5M
        |__ Port 4: Dev 4, If 0, Class=Human Interface Device, Driver=usbhid, 1.5M
root@openkylin:/home/openkylin#
root@openkylin:/home/openkylin#
root@openkylin:/home/openkylin#

插入后
root@openkylin:/home/openkylin# lsusb -t
/:  Bus 08.Port 1: Dev 1, Class=root_hub, Driver=xhci-hcd/1p, 5000M
/:  Bus 07.Port 1: Dev 1, Class=root_hub, Driver=xhci-hcd/1p, 480M
/:  Bus 06.Port 1: Dev 1, Class=root_hub, Driver=xhci-hcd/1p, 5000M
    |__ Port 1: Dev 2, If 0, Class=Mass Storage, Driver=uas, 5000M
/:  Bus 05.Port 1: Dev 1, Class=root_hub, Driver=xhci-hcd/1p, 480M
/:  Bus 04.Port 1: Dev 1, Class=root_hub, Driver=ohci-platform/1p, 12M
/:  Bus 03.Port 1: Dev 1, Class=root_hub, Driver=ohci-platform/1p, 12M
/:  Bus 02.Port 1: Dev 1, Class=root_hub, Driver=ehci-platform/1p, 480M
/:  Bus 01.Port 1: Dev 1, Class=root_hub, Driver=ehci-platform/1p, 480M
    |__ Port 1: Dev 2, If 0, Class=Hub, Driver=hub/4p, 480M
        |__ Port 3: Dev 3, If 0, Class=Human Interface Device, Driver=usbhid, 1.5M
        |__ Port 3: Dev 3, If 1, Class=Human Interface Device, Driver=usbhid, 1.5M
        |__ Port 4: Dev 4, If 0, Class=Human Interface Device, Driver=usbhid, 1.5M
root@openkylin:/home/openkylin#

dmesg信息
[   56.683651] usb 6-1: new SuperSpeed Gen 1 USB device number 2 using xhci-hcd
[   56.701732] usb 6-1: New USB device found, idVendor=174c, idProduct=1153, bcdDevice= 1.00
[   56.701748] usb 6-1: New USB device strings: Mfr=2, Product=3, SerialNumber=1
[   56.701757] usb 6-1: Product: Ugreen Storage Device
[   56.701765] usb 6-1: Manufacturer: Ugreen
[   56.701774] usb 6-1: SerialNumber: 26A1EE834B3A
[   56.709642] scsi host0: uas
[   56.710868] scsi 0:0:0:0: Direct-Access     KINGSTON  SA400S37240G    0    PQ: 0 ANSI: 6
[   56.712594] sd 0:0:0:0: [sda] 468862128 512-byte logical blocks: (240 GB/224 GiB)
[   56.712710] sd 0:0:0:0: [sda] Write Protect is off
[   56.712715] sd 0:0:0:0: [sda] Mode Sense: 43 00 00 00
[   56.712923] sd 0:0:0:0: [sda] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA
[   56.713180] sd 0:0:0:0: [sda] Optimal transfer size 33553920 bytes
[   56.756728]  sda: sda1
[   56.785263] sd 0:0:0:0: [sda] Attached SCSI disk
[   56.831716] sd 0:0:0:0: Attached scsi generic sg0 type 0

拔出移动硬盘，再插入下层U3端口

[  220.995566] usb 6-1: USB disconnect, device number 2
[  221.010564] sd 0:0:0:0: [sda] Synchronizing SCSI cache
[  221.210217] sd 0:0:0:0: [sda] Synchronize Cache(10) failed: Result: hostbyte=0x07 driverbyte=0x00
[  225.563625] usb 8-1: new SuperSpeed Gen 1 USB device number 2 using xhci-hcd
[  225.581932] usb 8-1: New USB device found, idVendor=174c, idProduct=1153, bcdDevice= 1.00
[  225.581940] usb 8-1: New USB device strings: Mfr=2, Product=3, SerialNumber=1
[  225.581944] usb 8-1: Product: Ugreen Storage Device
[  225.581947] usb 8-1: Manufacturer: Ugreen
[  225.581951] usb 8-1: SerialNumber: 26A1EE834B3A
[  225.585374] scsi host0: uas
[  225.586402] scsi 0:0:0:0: Direct-Access     KINGSTON  SA400S37240G    0    PQ: 0 ANSI: 6
[  225.587603] sd 0:0:0:0: Attached scsi generic sg0 type 0
[  225.588405] sd 0:0:0:0: [sda] 468862128 512-byte logical blocks: (240 GB/224 GiB)
[  225.588539] sd 0:0:0:0: [sda] Write Protect is off
[  225.588545] sd 0:0:0:0: [sda] Mode Sense: 43 00 00 00
[  225.588766] sd 0:0:0:0: [sda] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA
[  225.588997] sd 0:0:0:0: [sda] Optimal transfer size 33553920 bytes
[  225.623173]  sda: sda1
[  225.654381] sd 0:0:0:0: [sda] Attached SCSI disk

root@openkylin:/home/openkylin# lsusb  -t
/:  Bus 08.Port 1: Dev 1, Class=root_hub, Driver=xhci-hcd/1p, 5000M
    |__ Port 1: Dev 2, If 0, Class=Mass Storage, Driver=uas, 5000M
/:  Bus 07.Port 1: Dev 1, Class=root_hub, Driver=xhci-hcd/1p, 480M
/:  Bus 06.Port 1: Dev 1, Class=root_hub, Driver=xhci-hcd/1p, 5000M
/:  Bus 05.Port 1: Dev 1, Class=root_hub, Driver=xhci-hcd/1p, 480M
/:  Bus 04.Port 1: Dev 1, Class=root_hub, Driver=ohci-platform/1p, 12M
/:  Bus 03.Port 1: Dev 1, Class=root_hub, Driver=ohci-platform/1p, 12M
/:  Bus 02.Port 1: Dev 1, Class=root_hub, Driver=ehci-platform/1p, 480M
/:  Bus 01.Port 1: Dev 1, Class=root_hub, Driver=ehci-platform/1p, 480M
    |__ Port 1: Dev 2, If 0, Class=Hub, Driver=hub/4p, 480M
        |__ Port 3: Dev 3, If 0, Class=Human Interface Device, Driver=usbhid, 1.5M
        |__ Port 3: Dev 3, If 1, Class=Human Interface Device, Driver=usbhid, 1.5M
        |__ Port 4: Dev 4, If 0, Class=Human Interface Device, Driver=usbhid, 1.5M
root@openkylin:/home/openkylin#

可以替换试试
4b内核驱动安装包

大法师

@shengxia 新打包的ubuntu系统密码123 用户名coolpi

大法师

@shengxia 建议U3设备直连测试看看情况。外挂转接NVME有供电要求

大法师

@shengxia 默认配置是host模式。正反插提供dmesg 日志看看，另外插拔重新识别有无变化，也可以再试试单独U3 U盘在上层端口能不能识别到super speed
